SH66

  • 在库存:9999
  • Category:移动手持
$700 $750

高性能、精心制作的专业手持设备: Win11、英特尔四核+灵活的存储(流畅)。6.5英寸HD屏幕(清晰、直观的触感)。5000mAh电池+IP65(适用于户外/复杂场景)。坚固的5G/WiFi,丰富的端口+专业功能(扫描、定位)-多功能,移动/异地工作可靠。

立即购买 加入购物车
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

产品概述

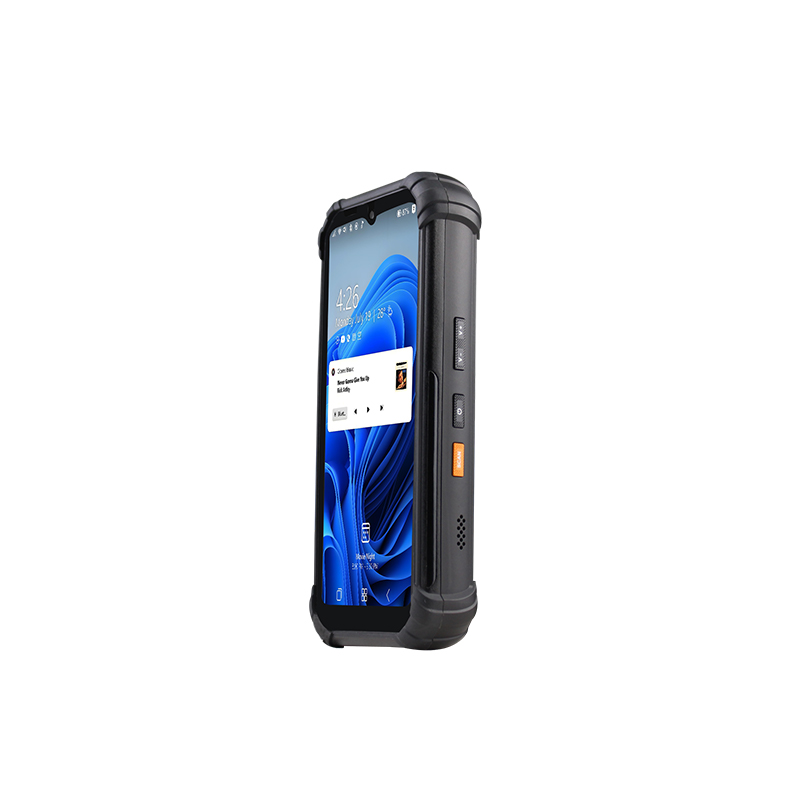

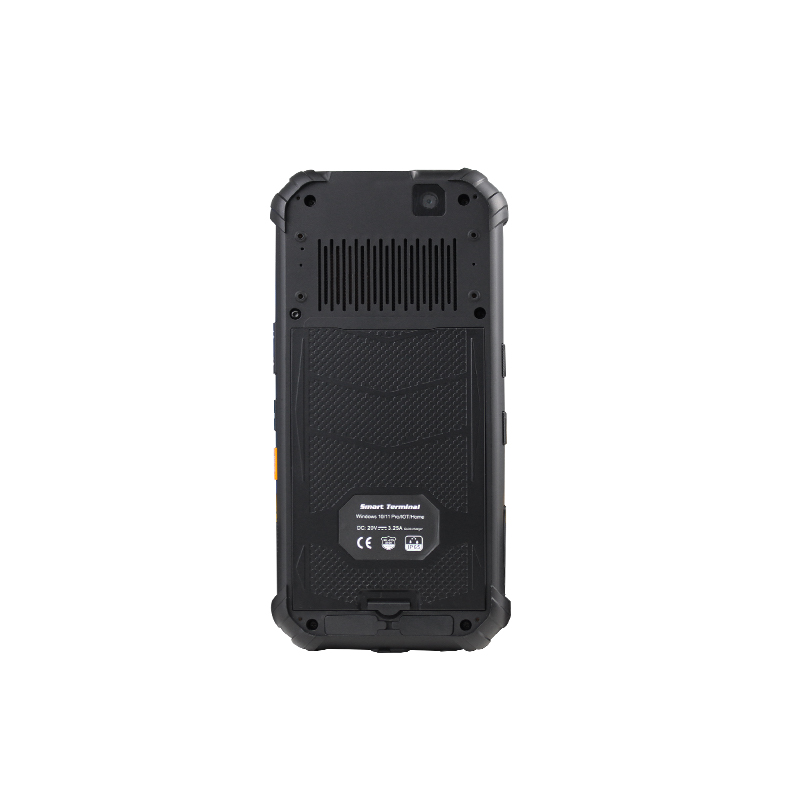

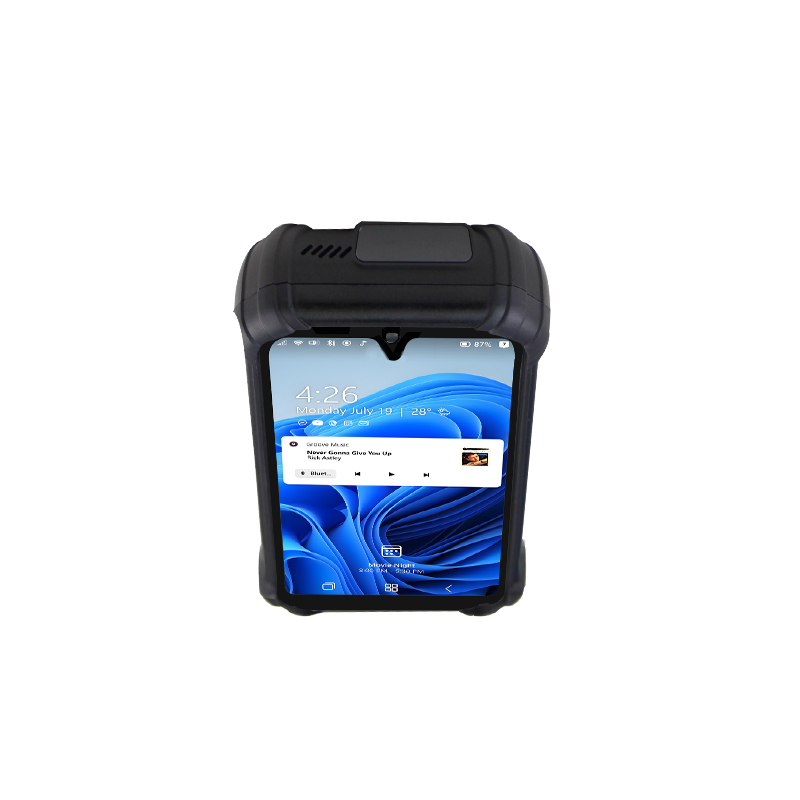

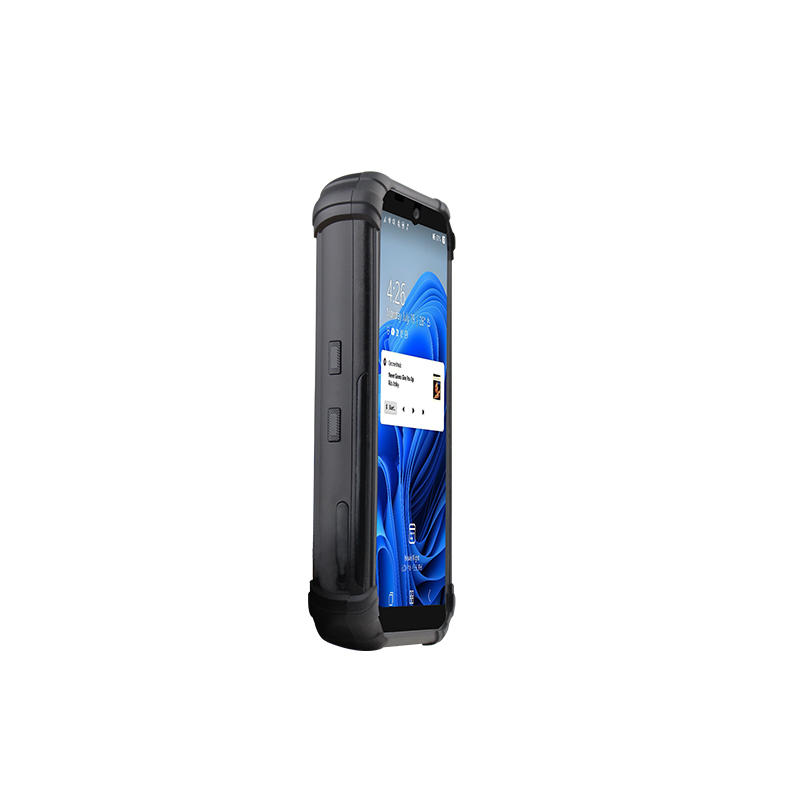

SH66是一款6.5英寸加固型手持终端,搭载英特尔N100四核处理器(主频1.8GHz,睿频可达3.4GHz),预装Windows 11专业版(可选家庭版/物联网版)。该产品支持可扩展存储组合(可选8GB/256GB、8GB/512GB、16GB/256GB、16GB/512GB),配备6.5英寸720×1600分辨率显示屏(亮度380尼特)、前置500万/后置800万像素摄像头、5000毫安时7.6伏特电池,支持4G LTE全网通(北美地区适配SLM770A/EC25-AUX模块)、英特尔® WiFi 6 AX201无线网卡及蓝牙5.2。产品采用优化的紧凑型设计(尺寸178.3×83×26.16mm,重量420克),符合IP65防尘防水等级、具备1.2米抗跌落能力,配备双USB 3.0接口及全功能Type-C接口(20W快充),专为轻量化Windows 11便携式工业数据采集及移动作业流程打造。

核心特性

  • 预装Windows 11专业版(可选家庭版/物联网版),搭载英特尔N100四核处理器(1.8GHz主频/3.4GHz睿频),配备超高清显卡24个执行单元
  • 灵活的存储组合选项(8GB/256GB至16GB/512GB),大幅提升Windows 11运行性能
  • 6.5英寸720×1600分辨率显示屏(380尼特),十点触控设计,实现便捷的移动交互操作
  • 5000毫安时7.6伏特大容量电池,3小时快充即可满电,视频播放续航可达4.5小时
  • 支持4G LTE全球通(SLM770A/EC25-AUX模块)、英特尔WiFi 6 AX201、蓝牙5.2及近场通信(NFC)
  • 多种条码扫描模块可选(NLS-N1、斑马SE5500/SE4710/SE655),满足多场景数据采集需求
  • IP65防尘防水、1.2米抗跌落,轻量化设计(178.3×83×26.16mm/420克),便携又耐用

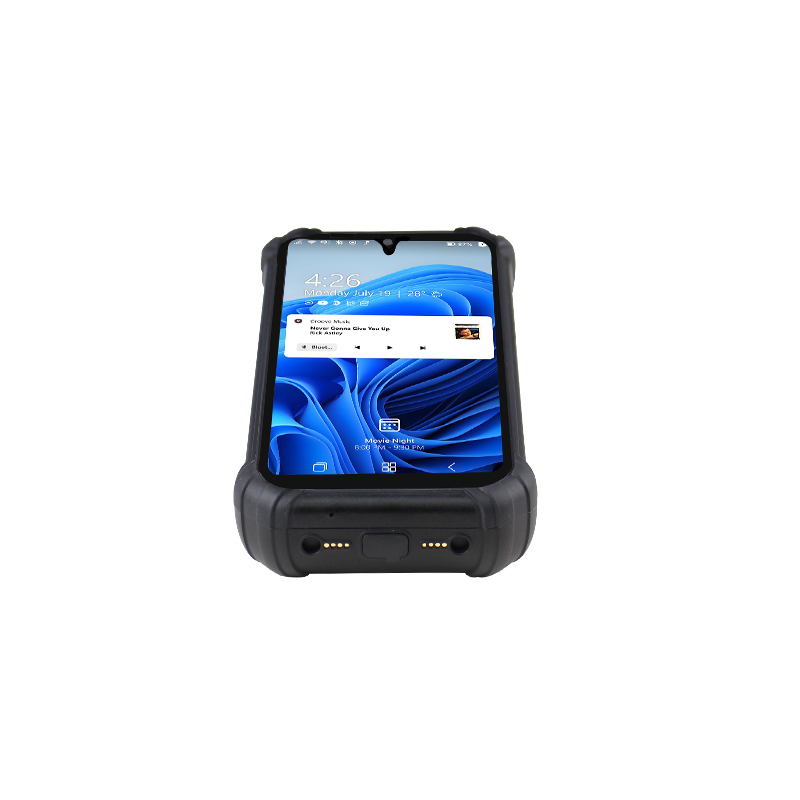

  • 双USB 3.0接口、全功能Type-C接口(20W快充),配备8针磁吸顶针接口支持功能扩展

技术参数(SH66)

操作系统 Windows 11 专业版
可选家庭版 / 物联网版
中央处理器 英特尔N100(四核四线程;主频1.8GHz)
睿频可达3.4GHz
图形处理器 超高清显卡(24个执行单元)
运行内存/存储内存 8GB/256GB
可选8GB/512GB、16GB/256GB、16GB/512GB
显示屏 6.5英寸;分辨率720×1600;亮度380尼特
触摸屏 十点触控
摄像头 前置:500万像素;后置:800万像素
电源与电池 5000毫安时;7.6伏特
充电时长:约3小时
使用时长:4小时30分钟(50%音量、60%亮度,播放本地1080P视频)
无线广域网 FDD_LTE:B1/B2/B3/B4/B5/B7/B8/B28;TDD_LTE:B40
WCDMA:B1/B2/B4/B5/B8;GSM:B2/B3/B5/B8
模块:SLM770A(北美地区为EC25-AUX)
定位系统 北斗、GPS、格洛纳斯
无线网络 802.11a/b/g/n/ac/ax协议;支持无线AP(移动热点);2.4G、5G双频
英特尔® Wi-Fi 6 AX201(无线/蓝牙二合一)
蓝牙 5.2版本
近场通信 13.56兆赫兹,感应距离:1-3厘米;兼容ISO14443 TYPE A协议
麦克风 灵敏度:-32±2分贝;输出阻抗:2.2千欧×1
扬声器 8欧姆 1.0瓦
传感器 光线传感器、重力传感器、加速度传感器
尺寸 178.3×83×26.16毫米
重量 420±20克
语言 多语言
输入/输出接口 Type-C×1(全功能;20W快充);SIM卡槽×1;TF卡槽×1;USB 3.0×2
底部8针磁吸顶针接口
按键 音量加减、电源、扫描键
自定义按键×2
一维/二维条码扫描 可选:NLS-N1、斑马SE5500、斑马SE4710、SE655(一维)
配件 蓝色包装盒;充电器(20W);手挂绳;螺丝及螺丝刀
可选配件:底座充电坞
多媒体(硬件解码) 图片格式:BMP、JPG、GIF、PNG
视频格式:MEPG 1/2/4、H.263/H.264、RMVB、WMV/VC-1、MVC、AVS、MJPEG(最高1080P)
音频格式:MP3、WMA、WAV、OGG、FLAC、ALAC、APE、AAC、AC-3、DTS(需授权)
防护等级 IP65防尘防水、1.2米抗跌落
温度 存储温度:-40℃ 至 60℃;工作温度:-20℃ 至 55℃

应用场景

📦
轻量化物流管理
🏭
便携式工业4.0作业
🛒
零售移动扫码作业
👨💼
现场服务数据采集
