ST11-W

  • 库存:99999
  • Category:ST11 系列
$0$0

适用于各种场景的Windows坚固平板电脑:Win10流畅运行工作应用程序。10.1英寸HD屏幕,12000mAh全天电池。稳定的4G/WiFi,IP65保护+跌落电阻处理工业/汽车环境。可定制,适用于物流/化学工作。

立即购买 加入购物车
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

产品概述

ST11-W是一款10.1英寸加固型平板电脑,搭载英特尔Cherry Trail Z8350四核处理器(主频1.44GHz,睿频可达1.92GHz),预装Windows 10操作系统(可选家庭版/专业版/IoT版)。该产品标配4GB运行内存+64GB存储内存,配备10.1英寸1200×1920分辨率显示屏(亮度450尼特),前置200万像素、后置500万像素摄像头;采用双电池设计(主电池12000mAh + 副电池2550mAh),支持4G LTE全网通(SLM770A模块)、WiFi 802.11a/b/g/n/ac、蓝牙4.2及NFC近场通信。产品具备IP65防尘防水等级、1.2米抗跌落能力,可选配超高频RFID读写器/指纹识别/高精度GPS,专为高性价比的Windows工业级及物联网应用场景打造。

核心特性

  • 预装Windows 10系统(可选家庭版/专业版/IoT版),搭载英特尔Cherry Trail Z8350四核处理器(主频1.44GHz/睿频1.92GHz)
  • 集成英特尔高清显卡400,配备10.1英寸1200×1920分辨率显示屏(亮度450尼特),支持10点触控,兼容手写笔及湿手操作
  • 4GB运行内存+64GB存储内存,双电池设计(12000mAh+2550mAh)大幅延长续航时长
  • 前置200万+后置500万像素摄像头,支持4G LTE多频段全网通(SLM770A模块)、WiFi 802.11a/b/g/n/ac无线网络
  • 丰富接口配置:USB 3.0/2.0、HDMI、RJ45网口、RS232串口、双pogopin连接器,满足多场景连接需求
  • IP65防尘防水等级、1.2米抗跌落、MIL-STD-810G美军标认证,可选配超高频RFID/指纹识别/UM960高精度GPS
  • 高性价比Windows IoT解决方案,机身紧凑(268.9×176.8×18毫米)且轻量化(1140±50克)
  • 支持多媒体硬件解码,可流畅播放1080P视频及多种音频格式

技术参数(ST11-W)

操作系统 Windows 10(可选家庭版/专业版/IoT版)
中央处理器 英特尔Cherry Trail Z8350(四核四线程;主频1.44GHz)
睿频可达1.92GHz
图形处理器 英特尔高清显卡400
运行内存/存储内存 4GB/64GB
显示屏 10.1英寸;分辨率1200×1920;亮度450尼特
触摸屏 10点触控
支持手写笔;支持湿手触控
摄像头 前置:200万像素;后置:500万像素
电源与电池 主电池:12000mAh / 3.8V直流(45.6瓦时)
副电池:2550mAh
无线广域网 TDD_LTE:B40;FDD_LTE:B1/B2/B3/B4/B5/B7/B8/B28
WCDMA:B1/B2/B4/B5/B8;GSM:B2/B3/B5/B8
模块:SLM770A(北美地区为EC25-AUX)
定位系统 北斗、GPS、格洛纳斯
无线网络 802.11a/b/g/n/ac无线协议;支持无线AP(移动热点);2.4G、5G双频
模块:英特尔Stone Peak 3165(WiFi/蓝牙二合一)
蓝牙 4.2版本
近场通信 13.56兆赫兹,感应距离:1-3厘米;支持ISO14443 TYPE A协议
麦克风 灵敏度:-32±2分贝;输出阻抗:2.2千欧×1
扬声器 8欧姆 1.5瓦
传感器 光线传感器、加速度传感器、重力传感器
尺寸 268.9×176.8×18毫米
重量 1140±50克
语言 多语言支持

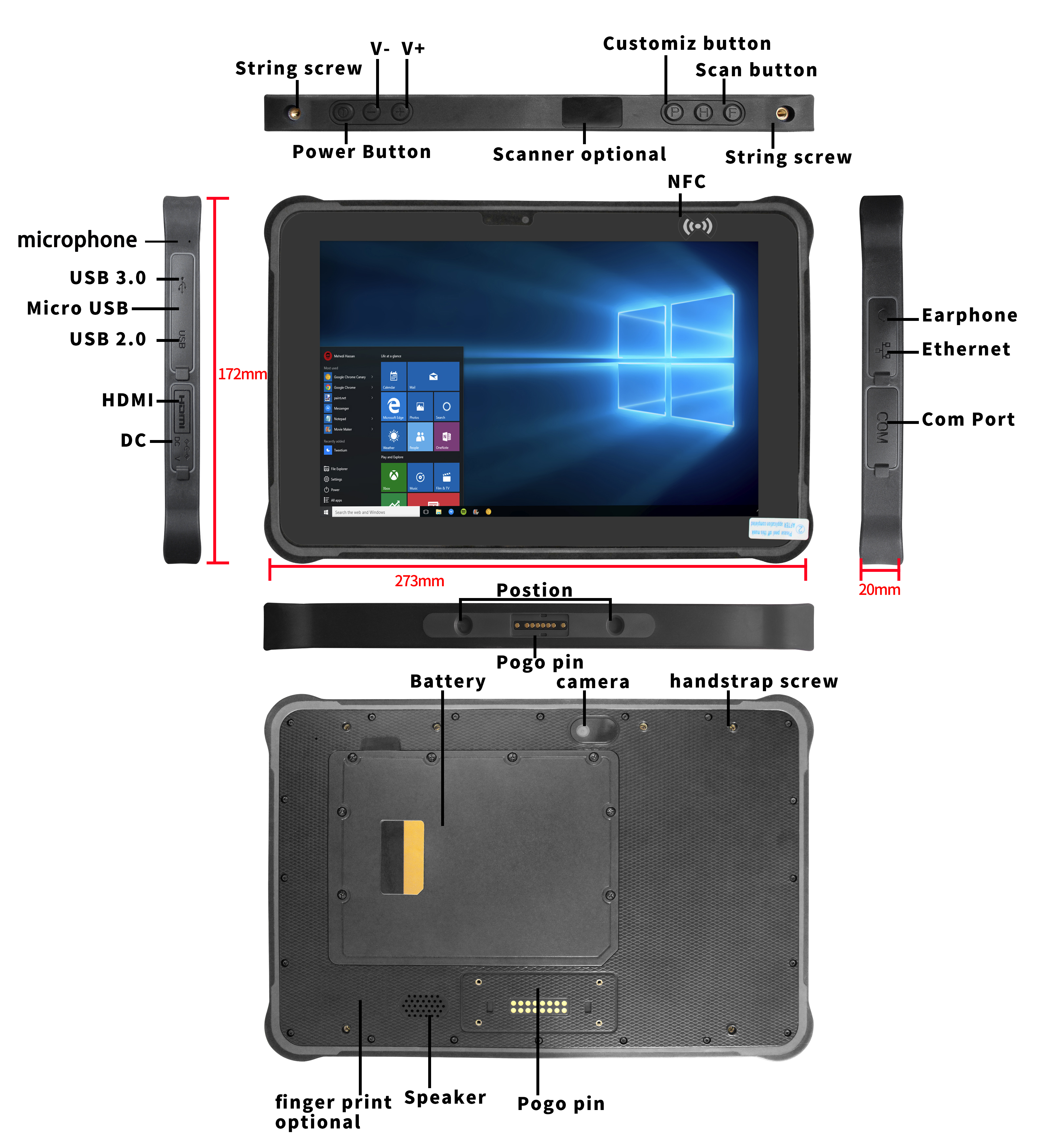

输入/输出接口 USB-A接口:USB 3.0×1 + USB 2.0×1;直流电源接口×1(3.5×12毫米);HDMI×1;耳机接口×1;RJ45网口×1;RS232串口×1;SIM卡槽×1;TF卡槽×1
底部pogopin接口:USB 2.0、充电、RS232
背部pogopin接口:USB 2.0、RS232
按键 音量加减键、电源键、条码扫描键“F”
P键、H键(默认无功能)
一维/二维条码扫描器 可选配:霍尼韦尔N4680
超高频RFID 可选配M-500
美标M-500(902-928兆赫兹):外置(识别距离3-5米)
欧标M-500(865-868兆赫兹):外置(识别距离3-5米)
可选配M-301
美标M-301(902-928兆赫兹):外置(识别距离5-8米)
欧标M-301(865-868兆赫兹):外置(识别距离5-8米)
指纹识别 可选配:AFM60
高精度定位系统 可选配:UM960
配件 蓝色包装盒;直流充电器(5V 3A);背带;螺丝;腕带;螺丝刀
可选配:扩展坞;车载支架STA15;车载支架STA03;磁吸键盘
多媒体(硬件解码) 图片格式:BMP、JPG、GIF、PNG
视频格式:MEPG 1/2/4、H.263/H.264、RMVB、WMV/VC-1、MVC、AVS、MJPEG(最高支持1080P)
音频格式:MP3、WMA、WAV、OGG、FLAC、ALAC、APE、AAC、AC-3、DTS(需授权)
防护等级 IP65防尘防水,1.2米抗跌落
认证 MIL-STD-810G美军标;CE、FCC、3C认证
工作温度 存储温度:-40℃至60℃;工作温度:-20℃至55℃

应用场景

?
Windows物联网应用
?
长续航现场作业
?
入门级工业物流
?
基础工业自动化
