ST9-M

  • 库存:99999
  • Category:ST9 系列
$0$0

ST9-M被称为“工业全能动力”,适合物流/工业场景。拥有视窗+英特尔i5、高亮度显示屏、全通信、IP65防护、抗冲击、宽耐温和可扩展功能,是您强大的工业工作伙伴。

立即购买 加入购物车
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

产品概述

ST9-M是一款8英寸加固型平板电脑,搭载Intel I5-8200Y双核心处理器(涡轮增压可达3.90GHz),支持Windows 10 Pro/Home/IoT、Windows 11 Pro或UbuntuKylin-20.04操作系统。具备TPM2.0安全防护、灵活存储空间(8GB/256GB最高可扩展至16GB/1TB)、8英寸1200×1920 IPS显示屏(可选1000尼特高亮度)、5MP/13MP双摄像头、5000mAh 7.7V电池、4G LTE网络连接功能及IP65防尘防水等级。配备Intel UHD Graphics 615显卡、丰富接口与可选高精度GPS,为Windows/Linux工业及企业级应用提供高端稳定性能。

核心特性

  • 多系统支持:Windows 10/11 Pro/Home/IoT、UbuntuKylin-20.04,搭载Intel I5-8200Y(1.30GHz,涡轮增压3.90GHz)
  • TPM2.0安全防护,Intel UHD Graphics 615显卡强化图形处理性能
  • 8英寸1200×1920 IPS显示屏(最高400尼特,可选1000尼特),支持触控笔/湿手操作
  • 灵活存储配置:8GB/256GB(可选8GB+128GB eMMC/16GB/16GB+128GB eMMC/512GB/1TB)
  • 4G LTE网络连接(SLM770A模块),Intel Stone Peak 7265无线网络/蓝牙二合一模块
  • IP65防尘防水,1.2米抗摔(符合MIL-STD-810G军规认证)
  • 丰富扩展接口:HDMI、USB 3.0×3、RS232、Pogopin扩展埠,适用于工业场景
  • 可选配功能:UHF RFID(M-500/M-301)、1D/2D条码扫描器、指纹识别器及高精度GPS

技术规格 (ST9-M)

操作系统 (OS) Windows 10 Pro(可选Windows 10 Home/IoT、Windows 11 Pro、UbuntuKylin-20.04)
中央处理器 (CPU) Intel I5-8200Y(双核心、四线程;1.30GHz)-涡轮增压可达3.90GHz
显卡 (GPU) Intel® UHD Graphics 615
可信平台模块 (TPM) 支持TPM2.0
内存 (RAM) 8GB(可选8GB+128GB eMMC/16GB/16GB+128GB eMMC)
存储空间 (ROM) 256GB(可选512GB/1TB)
显示屏 (LCD) 8英寸IPS屏幕,分辨率1200×1920;最高400尼特;可选800×1280分辨率1000尼特高亮度
触摸屏 (Touch Screen) 10点触控,支持触控笔,支持湿手操作
相机 (Camera) 前摄像头:5MP;后摄像头:13MP
电源与电池 (Power and Battery) 5000mAh;7.7V;充电时间:约3小时;使用时间:6小时30分钟(音量50%、亮度60%、播放本地1080P视频)
移动网络 (WWAN) FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B28;TDD-LTE:B40;WCDMA:B1/B2/B4/B5/B8;GSM/EDGE:B2/B3/B5/B8
模块:SLM770A(北美地区为EC25-AUX)
卫星导航 (GPS) BDS、GPS、GLONASS(可选高精度GPS:UM960)
无线网络 (WIFI) 802.11a/b/g/n/ac(2.4G/5G),无线热点(Mobile AP);模块:Intel Stone Peak 7265(无线网络/蓝牙二合一)
蓝牙 (BLUETOOTH) 4.2版本
近场通信 (NFC) 13.56MHz,通信距离:1-3cm;支持ISO14443 TYPE A协议
传感器 (Sensor) 光传感器、加速度传感器、重力传感器

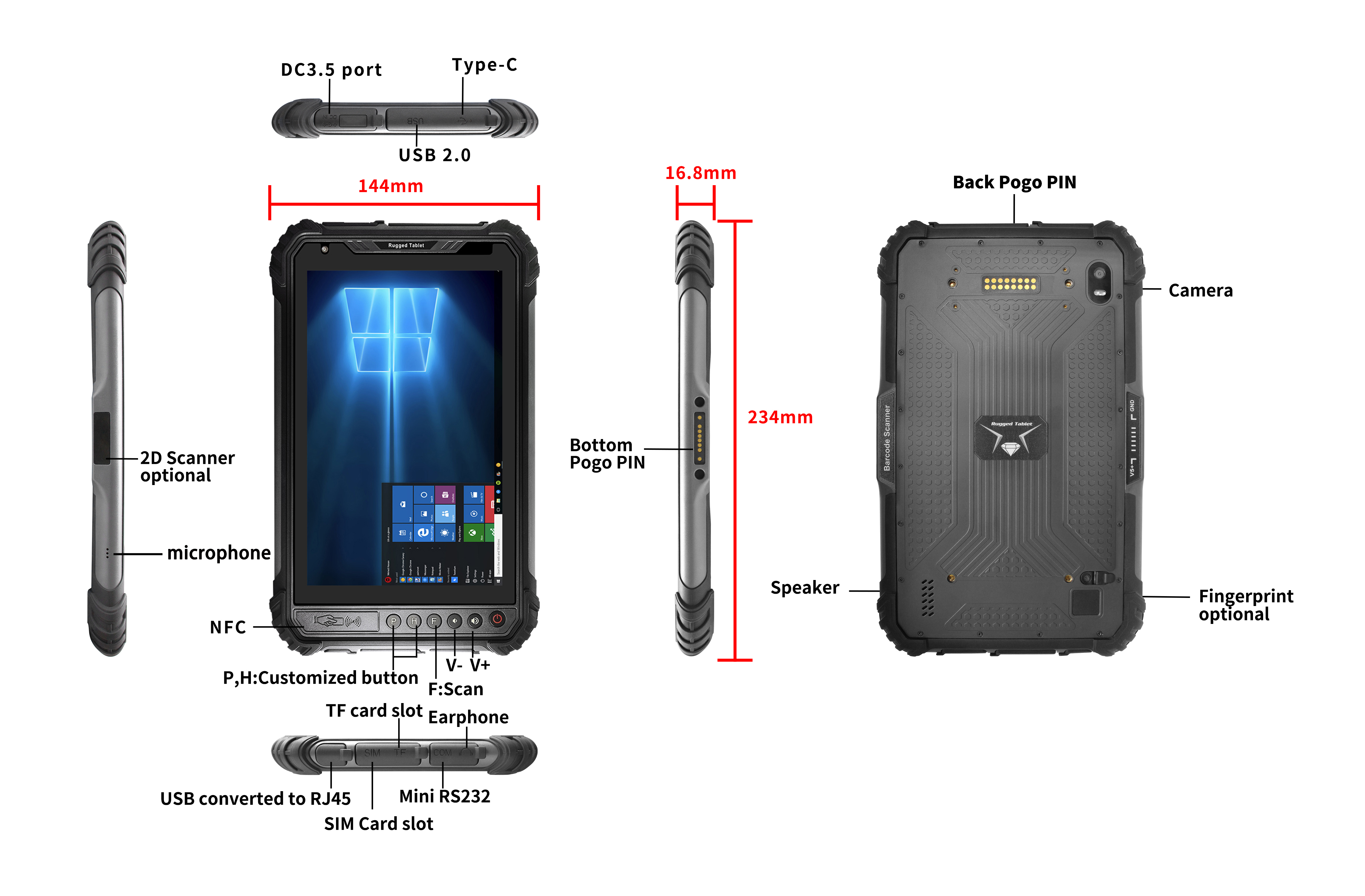

尺寸 (Size) 236×144×17.4mm
重量 (Weight) 700±50g
输入/输出接口 (Interface In/Out Port) HDMI×1、SIM卡插槽×1、RS232×1(mini-USB接口)、耳机孔×1、DC电源孔×1(4.0×15mm)、USB 3.0×3
底部Pogopin:USB 2.0;充电;RS232
背部Pogopin:USB 2.0;RS232
1D/2D条码扫描器 (1D/2D Barcode) 可选:NLS-N1 / M1 / SE2707
UHF RFID读写器 (UHF RFID) 可选M-500:美国(902-928MHz,3-5米)/欧盟(865-868MHz,3-5米)
可选M-301:美国(902-928MHz,5-8米)/欧盟(865-868MHz,5-8米)
指纹识别器 (Fingerprint) 可选:ZAZ-0A0 / 1020A
防护等级 (Proof Degree) IP65防尘防水,1.2米抗摔
认证 (Certification) MIL-STD-810G、CE、FCC、3C
温度范围 (Temperature) 储存环境:-40°C至60°C;工作环境:-20°C至55°C

应用场景

?️
高端工业控制
?
Linux开发与物联网
?
企业级安全应用
?️
专业现场服务
