ST9-W

  • 库存:0
  • Category:ST9 系列
$0$24

适用于物流、工业等场景的坚固平板电脑:配备视窗10和四核处理器,具有高亮度屏幕,支持多模通信,功能实用;提供IP65保护和宽温度适应性,具有可扩展功能,使其成为工业环境的耐用工具。

立即购买 加入购物车
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

产品概述

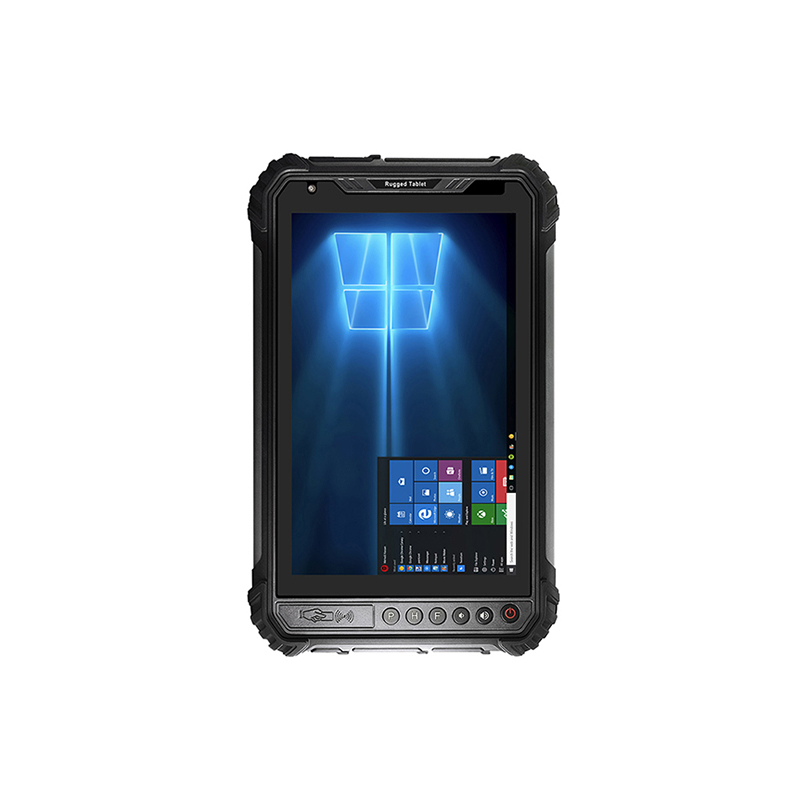

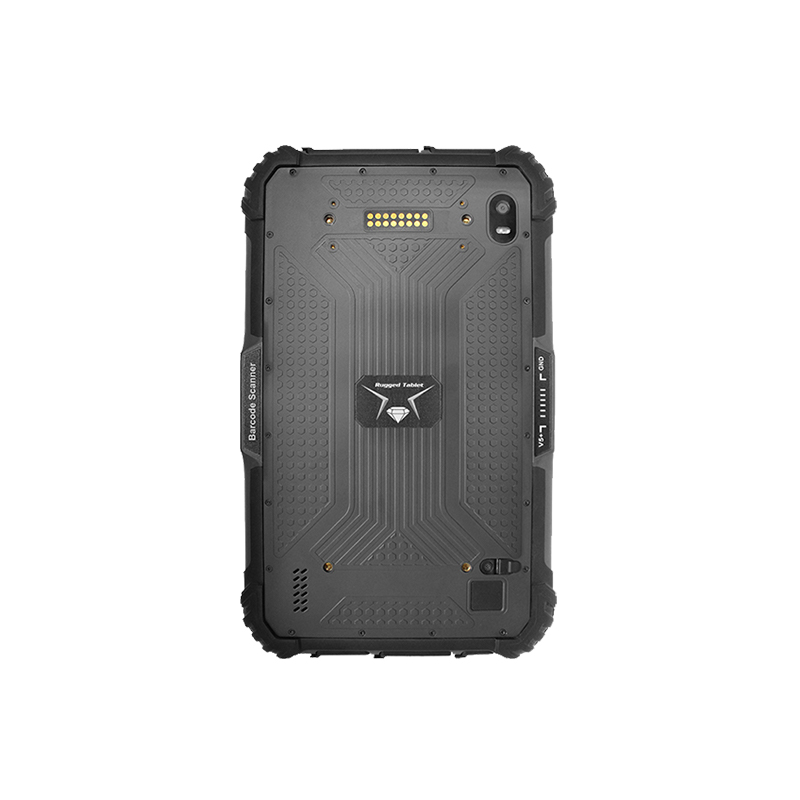

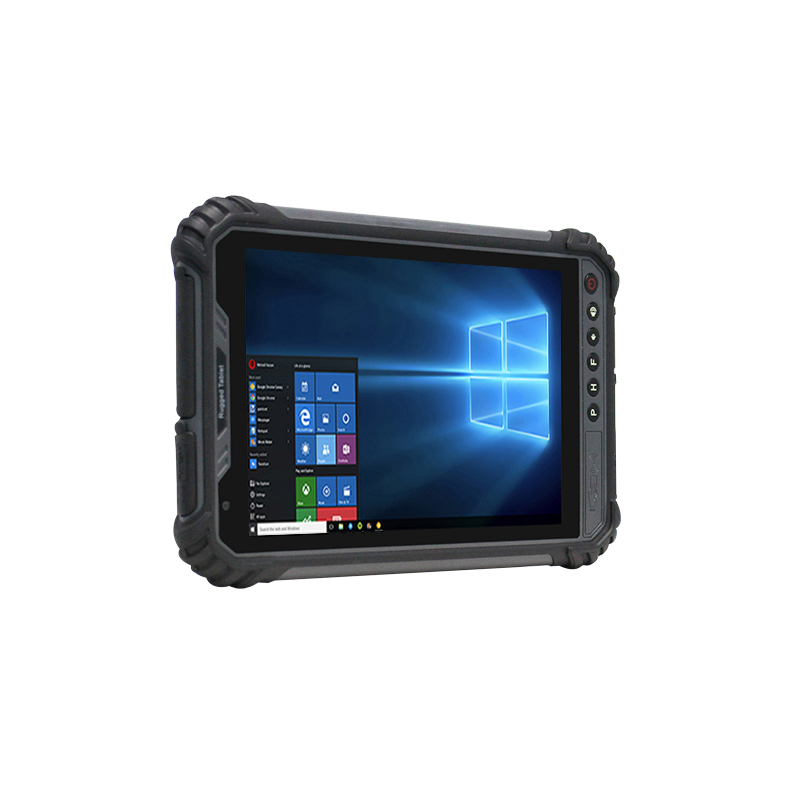

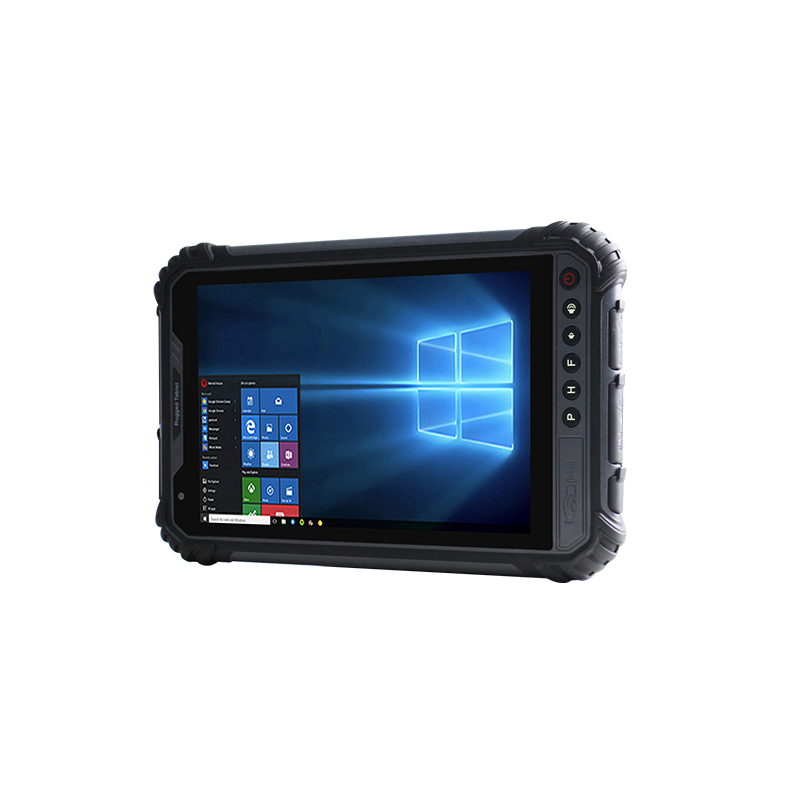

ST9-W是一款8英寸加固型平板电脑,搭载英特尔Cherry Trail Z8350四核处理器(睿频可达1.92GHz),运行Windows 10专业版(可选家庭版/IoT版)。存储配置为4GB/64GB,配备8英寸1200×1920分辨率IPS显示屏(最大亮度400尼特),前置200万像素+后置500万像素摄像头,内置7800mAh电池(支持7.5小时视频播放),支持4G LTE通信、WiFi 5及蓝牙4.2。产品具备HDMI输出接口、丰富的USB接口及IP65防尘防水等级,为基于Windows系统的工业及企业现场应用提供稳定可靠的性能支持。

核心特性

  • 搭载Windows 10专业版(可选家庭版/IoT版),英特尔Cherry Trail Z8350处理器(主频1.44GHz,睿频1.92GHz)
  • 配备Intel HD Graphics 400核芯显卡,8英寸1200×1920分辨率IPS显示屏(最大亮度400尼特)
  • 4GB/64GB存储配置,7800mAh大容量电池,支持7.5小时视频播放
  • 前置200万像素+后置500万像素摄像头,支持手写笔及湿手触控
  • 4G LTE通信(SLM770A模块),英特尔Stone Peak 3165 WiFi/蓝牙二合一模块
  • IP65防尘防水等级,1.2米抗跌落能力(通过MIL-STD-810G认证)
  • 丰富接口配置:HDMI、USB 3.0×2、USB 2.0×1、RS232、弹针扩展接口
  • 可选配超高频RFID(M-500/M-301)、一维/二维条码扫描、指纹识别及高精度GPS(UM960)

技术参数(ST9-W)

操作系统 Windows 10专业版(可选Windows 10家庭版/IoT版)
中央处理器 英特尔Cherry Trail Z8350(四核四线程;主频1.44GHz)- 睿频可达1.92GHz
图形处理器 Intel HD Graphics 400
运行内存/机身存储 4GB/64GB
显示屏 8英寸IPS屏,1200×1920分辨率;400尼特(最大值)
触摸屏 10点触控,支持手写笔,支持湿手触控
摄像头 前置:200万像素;后置:500万像素
电源与电池 7800mAh;3.8V;充电时间:3小时30分钟;使用时长:7小时30分钟(50%音量、60%亮度下播放本地1080P视频)
无线广域网 时分双工长期演进:B40;频分双工长期演进:B1/B2/B3/B4/B5/B7/B8/B28;宽带码分多址:B1/B2/B4/B5/B8;全球移动通信系统:B2/B3/B5/B8
模块:SLM770A(北美地区为EC25-AUX)
定位系统 北斗、GPS、格洛纳斯(可选高精度GPS:UM960模块)
无线网络 802.11a/b/g/n/ac协议(2.4G/5G双频),支持无线热点(移动AP);模块:英特尔Stone Peak 3165(WiFi/蓝牙二合一)
蓝牙 4.2版本
近场通信 13.56兆赫兹,感应距离:1-3厘米;支持ISO14443 TYPE A协议
传感器 光线传感器、加速度传感器、重力传感器
尺寸 236×144×17.4毫米
重量 670±20克

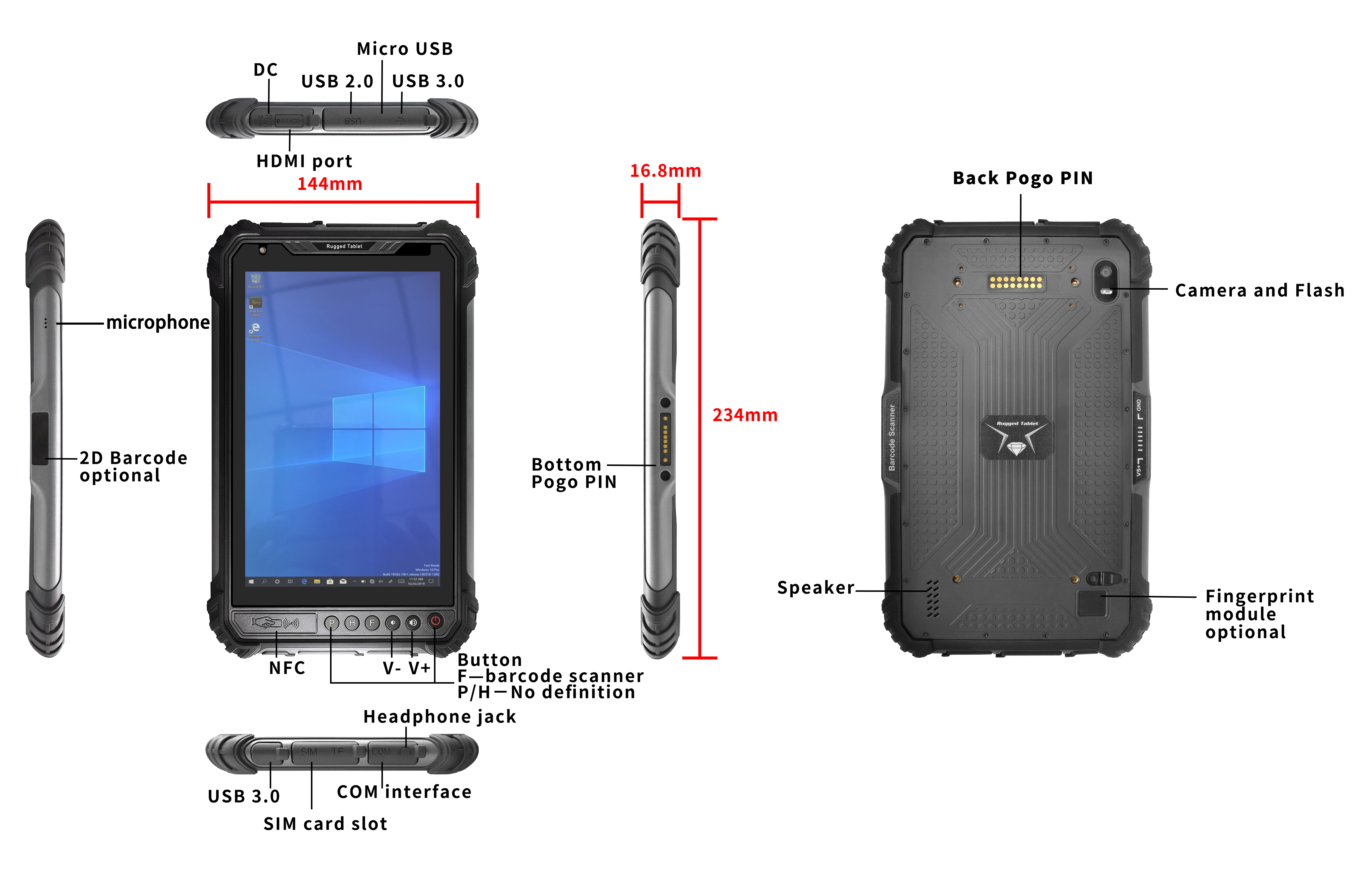

输入/输出接口 HDMI接口×1,SIM卡槽×1,RS232接口×1(迷你USB),耳机接口×1,直流电源接口×1(3.5×15毫米),USB-A接口:USB 3.0×2 + USB 2.0×1
底部弹针接口:USB 2.0、充电、RS232
背部弹针接口:USB 2.0、RS232
一维/二维条码 可选配:NLS-N1 / M1 / SE2707
超高频RFID 可选配M-500:美版(902-928兆赫兹,读取距离3-5米)/欧版(865-868兆赫兹,读取距离3-5米)
可选配M-301:美版(902-928兆赫兹,读取距离5-8米)/欧版(865-868兆赫兹,读取距离5-8米)
指纹识别 可选配:ZAZ-0A0 / 1020A
防护等级 IP65防尘防水,1.2米抗跌落
认证 MIL-STD-810G、CE、FCC、3C
工作/存储温度 存储:-40℃至60℃;工作:-20℃至55℃

应用场景

?️
Windows工业控制
?
现场数据处理
?
高精度GPS导航
?
企业现场服务
